Introduction of 3D Panel

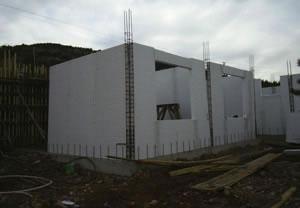

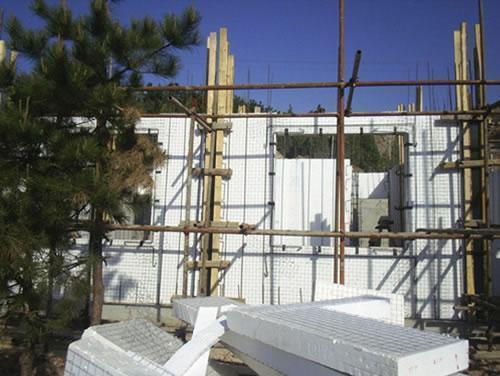

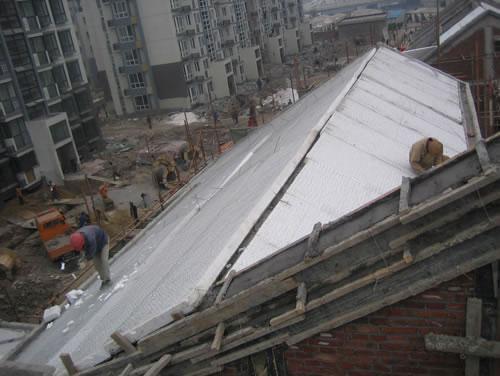

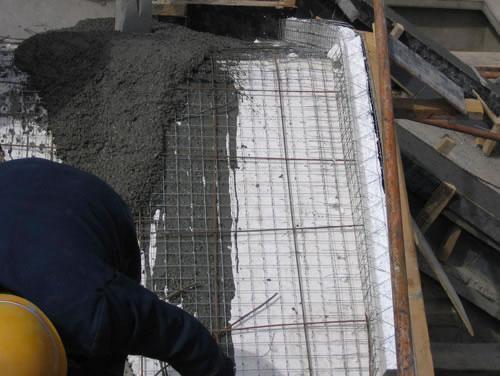

3D Panel is a kind of three dimensional lightweight structural panels, consisting of a super-insulated polystyrene core and nettings on both sides. It is an environmentally friendly product, acting as a construction panel for buildings. With the obvious advantage of saving construction time while providing greater structural integrity, this green and excellent material is sure to have a prosperous future.

Features of 3D Panel

Item Description
Investment Compared with traditional walling materials, 3D Panel reduces building cost largely
Convenient and fast Pre-treated 3D Panel dramatically saves working time and transportation charges
Sound insulation 3D Panel supplies a cozy living place
Thermal insulation 3D Panel can reduce energy leakage
Fireproof 50mm thickness 3D Panel could endure fire for about 1.5 hours
Comprehensive functions Quakeproof and windproof

Advantages of 3D Panel
1. Low defective welding rate, less than 3%.
2. High production speed, 500 m2 per 8 hours.
3. Wide-range options of steel wires: Specs I: 2.0-2.5mm      Specs II: 2.5-3.0mm
4. Monolayer and double-layer panels are both available.
5. Microcomputer control system: Inching, single-step, automation.
6. High-quality pneumatic organs and Mitsubishi PLC.

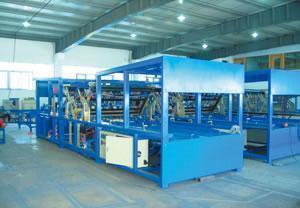

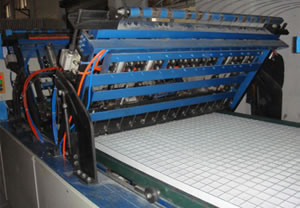

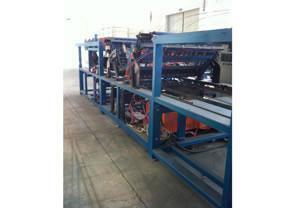

Technical Parameters of 3D Panel Production Line

Item Parameters
Workshop Area (L×W) (m) 32×12
Power Source 380V± (5%-10%)
Installed Power (kw) 160
Speed of Diagonal Steel Inserting (m2/h) ≥50
Speed of Netting Welding (m2/h) 120~140
Welding Time (ms) 20~160
EPS Requirement Density: 15±1kg
Fireproof
Oxygen Index ≥30%

Specifications of Final Products

Item Parameters
Mesh Size (mm) 50×50
Length (mm) 2400~3000
Width (mm) 1220
Thickness (mm) 76~126
Thickness of EPS Core (mm) 50~100
Diagonal Wire Diameter Φ2.0~Φ3.0
