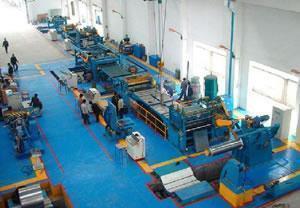

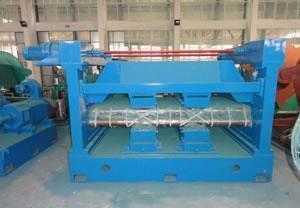

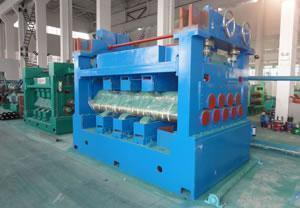

Our leveling cut to length line is a kind of steel coil slitting machine. The coil sheet cut to length line is generally used to cut the plate into specified length and width. Particularly, the steel plate processing equipment can flatten the material synchronously.

Working Process of Leveling Cut to Length Line
Material loading – Uncoiling – Pressing and Guiding – Clamping – Feeding – Transitional worktable – Guiding – Leveling – Length measuring – Cross shearing – Unloading – Stacking – Manual baling

Technical Parameters of Leveling Cut to Length Line

Item Unit Parameter
Coil Thickness mm 0.3-25
Coil Width mm 800-2500
Stacking Length mm 1000-12000
Min. Cutting Accuracy mm ±0.3
Max. Coil Weight ton 35
Leveling Speed m/min 0-70
