Asphalt Shingle Production Line/ Bitumen Shingle Production Line

Brief Introduction:

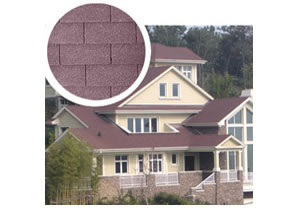

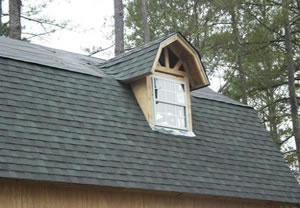

The base of layer of asphalt shingle is fiberglass mat. The mat is coated with asphalt which contains mineral fillers, thus making the fiberglass shingle waterproof. The outermost layer is sand, which is covered on.
A newer design of fiberglass asphalt shingle, called laminated shingle or architectural shingle, uses two distinct layers which are bonded together with asphalt sealant. Compared with traditional 3-tab shingles, laminated shingles are heavier, more expensive, and more durable. These also give a more varied, contoured visual effect to a roof surface.

Features of Asphalt Shingle:
Asphalt shingle is a new type of roof shingle. It is relatively inexpensive and fairly simple to install, and easy to cut, fit, and fasten. As a result, asphalt single has become one of the most widely used roofing covers. In addition, it is compatible with a variety of flashing and edging products, and doesn't require specialized accessories for roof edges, wall terminations, chimney or vent flashings.

Strong Points of Asphalt Shingle:
1. Good thermal insulation performance under both high and low temperature.
2. Outstanding waterproofing and corrosion resistant performance.
3. Wide application: thanks to its flexibility, it can be applied in different shapes of buildings, such as arc roof and round roof.
4. With low aging rate, shingle produced by our asphalt shingle production line maintains the original performance after long-time use.
5. Excellent handling characteristics, easy operation
6. Appealing appearance: provides a wide selection of colors in order to meet with different requirements on aesthetic taste.

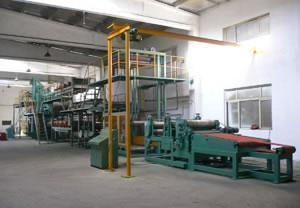

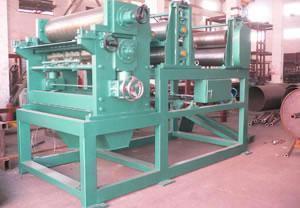

Main Parameters of Asphalt Shingle Production Line:

Item HIM-AS-1 HIM-AS-3 HIM-AS-5
Capacity (m2/year) 1 million 3 million 5 million
Product Width 1m
Product Thickness 3mm
Workshop (L×W×H) (m) 60×15×7 65×15×7 70×15×7
Power (kw) 300 350 400
Power Source 220V/380V, 50Hz
