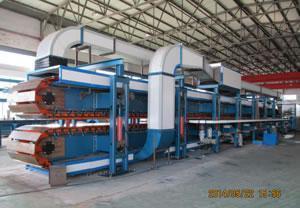

The PU sandwich panel production line can be classified into continuous PU sandwich panel production line and discontinuous PU sandwich panel production line. The former is specially offered for producing polyurethane or phenol sandwich panel with color steel surface. Compared with EPS and rock wool panel, the polyurethane sandwich panel has better insulation performance.

The discontinuous PU sandwich panel production line is composed of press machine and high or low PU injection machine. By comparison with the PU sandwich panel machinery of continuous series, this range of product is an economical investment for the users.

Technical Parameters of PU Sandwich Panel Production Line

Item Unit HIM-PU-1 HIM-PU-2D
Type -  Continuous Series Discontinuous Series
Speed m/min 0-8 -
Capacity m²/h 0-528 0-36
Dimension m 128×18×6.5 30×5×5
Total Power kw 350 60
Weight t 230 25

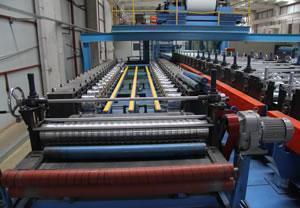

Z-Lock Sandwich Panel Production Line

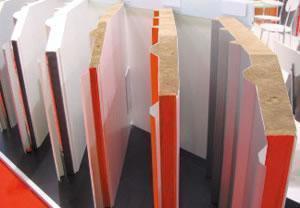

The Z-lock sandwich panel production line is suitable for producing EPS or rock wool sandwich panels with big thickness and unique Z lock joint. The panel produced is warmly welcomed in the high latitude areas.

Technical Parameters

Item Unit HIM-S-8AZ HIM-S-7Z
Type - Fully-automatic Semi-automatic
Speed m/min 0-6 0-6
Capacity m²/h 0-432 0-432
Dimension m 90×25×6 60×4.5×3
Total Power kw 200 65
Weight t 180 40
