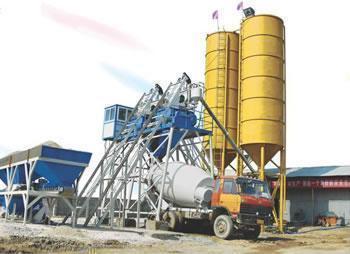

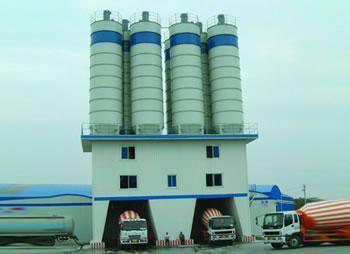

Concrete Batching Plant

Introduction of HiSuccess Concrete Batching Plant
HiSuccess International brand Concrete Batching Plant can be customized according to clients' detail requirements such as capacity, site, environment protection, structure and so on.
Our plants have highly cost-effective; all components are manufactured up to heavy operating conditions for a long lifetime. And for critical components, we adopt famous brand products.

Main Configuration of Concrete Batching Plant
Mixing System / Aggregate Batching Machine / Belt Conveyor / Powder Storage Silos / Screw Conveyor / Liquid Material Storage System / Weighing System / Pneumatic System / Dust Removing System / Control System

Characteristic of HiSuccess Concrete Batching Plant

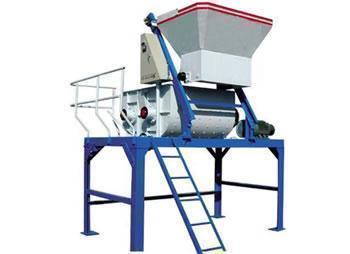

1. Mixer
Two shaft compulsory mixer, which has high mixing speed and great mixing quality.
Heavy duty structure and automatically lubricating system ensure long life time.
Advanced air pressure seal technology guarantees no leaking during mixing.
Water enter mixer by jetting, which shorten mixing time and make cleaning thorough.
2. Aggregate Batching Machine
Famous brand sensors guarantee high weighing accuracy and reliability.
It can weigh four kinds of aggregates simultaneous.
Vibrators make discharge process more fluently.
3. Dust Removing System
Batching, mixing and discharging of powder material in sealed circumstances, and advanced dust remover guarantee great dust removing efficiency.
4. Control System
It automatically controls the whole process, which including batching, mixing, discharging. Manual control also is available.
The screen display the flow chart correctly and synchronously.
The controller also has functions of storage formulation, automatically tare, display material level in the storage silos, amend the effect of material's fall, preset mixing time, statistics, and data printing, etc.

Technical Parameters of Concrete Batching Plant

Item HIM-HZS50 HIM-HZS75 HIM-HZS90 HIM-HZS120 HIM-HZS150
Production Capacity (m3/h) 50 75 90 120 150
Mixer JS1000 JS1500 JS1500 JS2000 JS3000
Power (kw) 110 160 200 215 290
Weight (mt) 22 60 65 85 85
Area (L×W) (m2) 20×15 25×16 50×15 52×16 55×18
